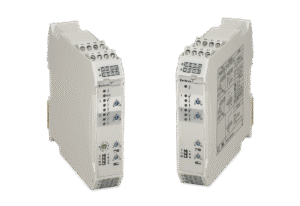

PAB
• Operation mode and max sensing range: Thru-beam: 0-70 m • Diffuse proximity: 0-4 m, • Supply voltage: 10-30 Vdc and 24 Vac or 90-240 Vac • Manual sensitivity adjustment • Sensor LED-drive • Automatic sensor test • Adjustable on/off time delay • 1 relay or 1 transistor output • Switch selectable light or dark function • Switch selectable long or short range • Test input, Power, output, alarm, signal level and master/slave address indicators • Alarm output • DIN rail mounting with bus functionPAB
• Operation mode and max sensing range: Thru-beam: 0-70 m
• Diffuse proximity: 0-4 m,
• Supply voltage: 10-30 Vdc and 24 Vac or 90-240 Vac
• Manual sensitivity adjustment
• Sensor LED-drive
• Automatic sensor test
• Adjustable on/off time delay
• 1 relay or 1 transistor output
• Switch selectable light or dark function
• Switch selectable long or short range
• Test input, Power, output, alarm, signal level and master/slave
address indicators
• Alarm output
• DIN rail mounting with bus function
