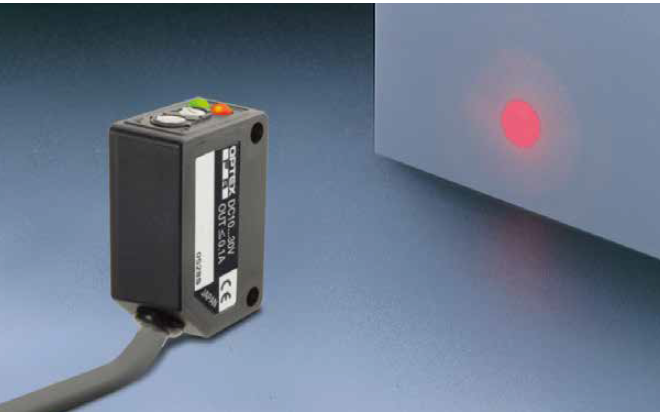

Optex: FA BGS-Z Series is a compact photoelectric sensor with background-suppression technology for stable object detection regardless of color or gloss. It offers adjustable sensing up to about 300 mm, fast 250–500 µs response, low power use (≈30 mA at 10–30 V DC), and selectable NPN/PNP outputs. Its IP67 (or IP69K stainless) housing makes it durable for harsh industrial environments.
Price:
• 3 models in the line-up to meet application
requirements
• Excellent resistance against ambient light
on BGS-Z15
• Fast response of 500μs suitable for material
handling applications
• Highly accurate height difference detection
by low hysteresis
• Cable and M8 4-pin connection models with
industry standard dimensions
Mechanical |
|
|---|---|
| Body material : | ABS (glass fiber filled); front cover/housing lens: PMMA. |
| Enclosure protection : | IP67 |
| Weight (without cable) : | Approx. 10 g |
| Operating Temperature: | −25 °C to +55 °C (no freezing) |
Electrical |
|
|---|---|
| Supply voltage : | 10 to 30 V DC, includes tolerance (~10% ripple). |
| Current consumption : | 30 mA or less. |
| Response time : | LED models: ≤ 500 µs Laser models: ≤ 250 µs |
Others |
|---|
