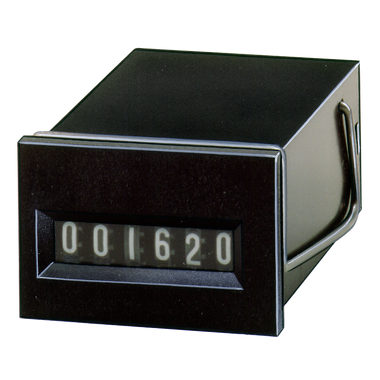

Kuebler : Mini pulse counter, 6-digit without zeroing,W16.20 not resettable and are designed with different front panel sizes for different applications. They have a very good price/performance ratio and are easy to handle. 7-digit, K 04 to K 07 and AK 07 offer many variants and can be used in both DC and AC applications. As built-in, surface-mounted and print counters with very high shock resistance, they can be used in various application areas.
| Electromechanical Counter | Summary |
| K07.20 | Micro pulse counter, 7-digit,3 V DC..24 V DC/ 115 V AC..230 V AC, Dimensions 25 x 13,8 mm/25,2 x 31 mm/27 x 35 mm/29 x 14 mm |
| W16.20 | Mini pulse counter, 6-digit without zeroing,115 V AC/230 V AC/12 V DC/24 V DC, Dimension N30 x 51 mm/34 x 23 mm | 31,5 x 20,5 mm |
Mechanical |
|
|---|---|
| Dimension : | 25 x 13,8 mm, 25,2 x 31 mm, 27 x 35 mm, 29 x 14 mm, 45 x 14 mm, 30 x 20 mm, 27 x 14 mm, 32 x 15 mm, 30 x 13 mm. |
| temperature range : | -10 °C ... +60 °C,-10 °C ... +50 °C |
| Protection category : | IP65, IP41 |
Electrical |
|
|---|---|
| Operating voltage : | 115 V AC, 230 V AC, 3 V DC, 4,5 V DC, 12 V DC, 24 V DC, |
| Current consumption : | 50mW, 250mW, 800mVA |
Others |
|---|
