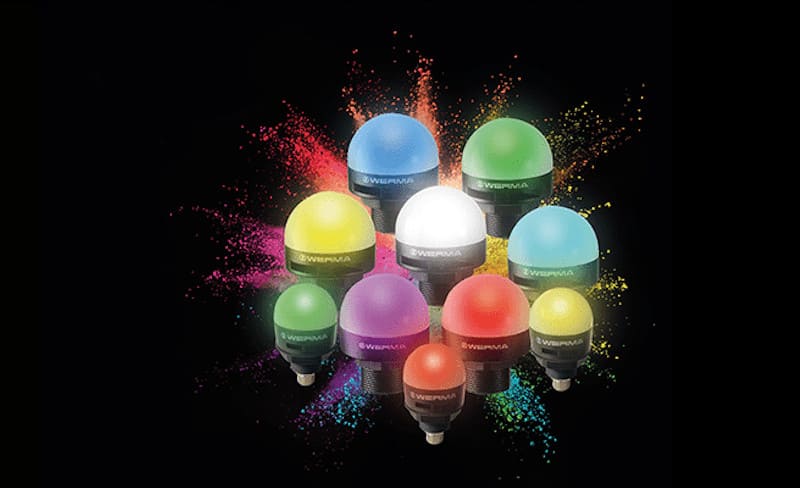

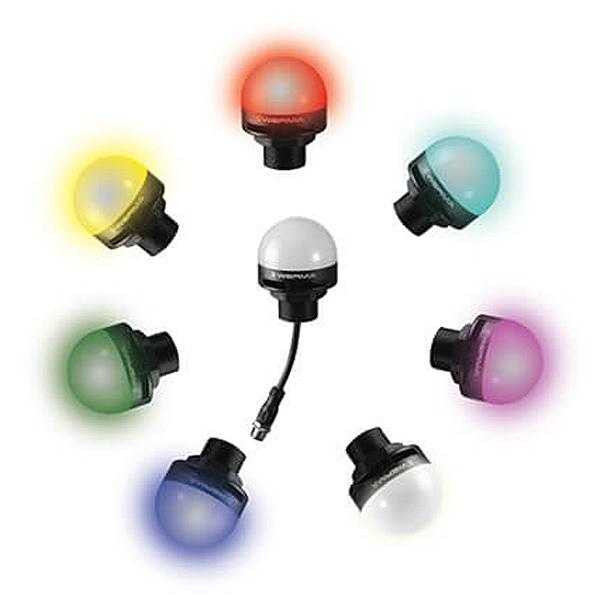

Werma : G MC35 UL Beacon 10 to 30V RGB M12,The multicolour version offers up to seven colours in one luminaire ,
C MC35 Beacon 24V RGY M12, The tricolour version combines the most common colour combination red,
MC55 MC55 RGB M12-plug 10-30VDC,Mini installation beacon / MC55.
| MC – Multicolour series | Summary |
| MC35 (Part’s) : G MC35 UL (241.320.50) C MC35 (241.440.55) |
Beacon 10 to 30Vdc ,Multicolour RGB, M12 plug , Without Buzzer Beacon 24Vdc , Tricolour RGY, M12 plug ,with Buzzer |
| MC55 : MC55 (24012050) | Beacon 10 to 30Vdc ,Multicolour RGB, M12 plug, Without Buzzer |
Price:
• Compact LED recessed luminaire with continuous light and 35 mm
• Control is via a pre-assembled M12 connector.
• High safety due to UL approval and IP69k.
Mechanical |
|
|---|---|
| MATERIAL PROPERTIES : | PC |
| Protection category : | IP65, IP69K |
| Dome colour : | Tranclucent |
| Housing colour : | Black |
Electrical |
|
|---|---|
| Temperature range : | -20 to +50℃ |
| Operating voltage : | 10 to 30 VDC |
| Light source : | LED |
| Light colour : | MC 7 colours |
| connection : | M12 plug 5-pole |
Others |
|---|
