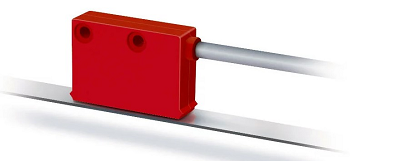

Siko Incremental Magnetic sensor: With digital interface and 12.5 μm resolution
Price:
• Max. resolution 12.5 μm max. resolution 0.006° with MR320 or MBR320 (250 poles)
• Repeat accuracy ±0.04 mm Repeat accuracy of ±1 increment

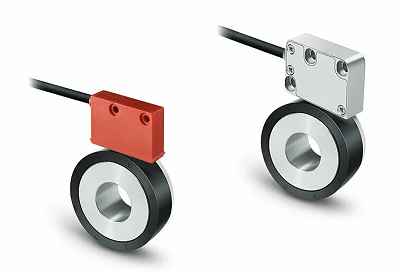

• Works with MB320/1 magnetic tape, MRI01 or MR320 magnetic ring, MBR320 magnetic tape ring
• Reading distance ≤2 mm Max. 16000 pulses/revolution in combination with MR320 or MBR320 (250 poles)
• Optionally with reference point R or flexible reference marks FR
Mechanical |
|
|---|---|
| Connection types : | open cable end plug connector 7/8-pole D-Sub 9-pole |
| Protection category : | IP 67 |
Electrical |
|
|---|---|
| Supply Voltage : | 24 V DC ±20 % (reverse polarity protected), 5 V DC ±5 %( no reverse polarity protection) |
| Current consumption : | <20 mA, <75 mA |
| Resolution : | Resolution : 0.04, 0.05, 0.08, 0.1, 0.16, 0.2, 0.8 mm |
