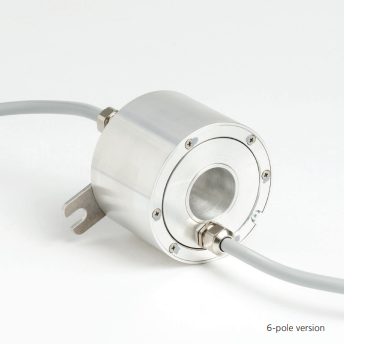

LTN Slip ring: Used in Applications like beverage filling system, drain inspection, food processing, metrology system, wind turbine pitch system
Price:
• Max. 24 rings with 3 A or max. 12 rings with 16 A
• Rings with 3 A or 16 A can be combined
• Outher diameter 80 mm
• Inner diameter max. 30 mm
• 240 VAC / 240 VDC
Mechanical |
|
|---|---|
| Protection category : | IP 54; IP 64 on request |
Electrical |
|
|---|---|
| Number of rings : | max. 24 rings pairwise with 3 A; max. 12 rings with 16 A; to be combined |
| Max. speed : | 250 min-1 for gold contacts or 1000 min-1 for silvercarbone on brass rings |
| Voltage: | 240 VAC / 240 VDC |
| Current per ring : | max. 24 rings pairwise with 3 A; max. 12 rings with 16 A; to be combined |
Others |
|---|
• With 58 mm flange
• Particularly resistant
• Magnetic – robust
• Dimension Ø 58 mm
• 14 bits singleturn
• 29 bits multiturn
• Max 10 mm shaft, with flat surface
• High precision
• Particularly resistant
• Without gear with 100% magnetic insensitivity
• Dimension Ø 36 mm
• 16 bits singleturn
• Max 10 mm hollow shaft, blind hole
• Max 1/4″ hollow shaft, blind hole
• Outer diameter: max. 105 mm
• Inner diameter: max. 50 mm
• Fieldbusses
• Fast Ethernet (certified to 100-BaseT CAT5e & Cat6)
• Gigabit Ethernet (certified to 1000-BaseT CAT5e)
• Maintenance-free
• Standardised structure
• Flexibily configurable interfaces
• Various housing materials
• COAXIAL SLIP RING FOR HD-VIDEO SIGNALS
• Outer diameter: max. 20 mm
• HD-SDI based on the standard SMPTE 292M
• 3G SDI based on the standard SMPTE 424M
• 6G-SDI partly based on SMPTE ST 2081
