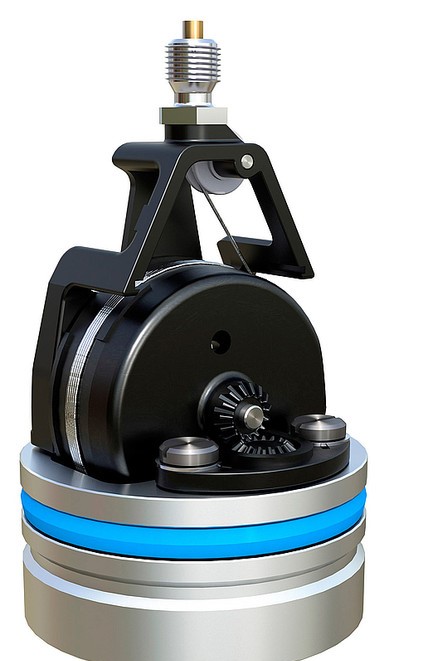

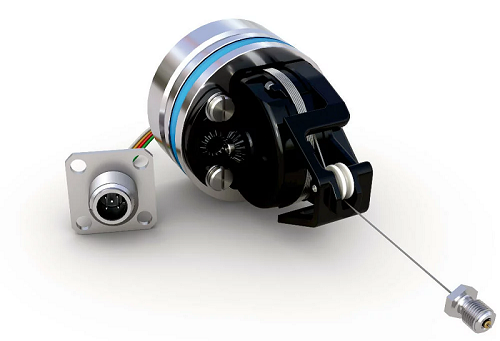

Siko Draw-Wire Encoder SGH10 :Position sensor for hydraulic cylinders with measuring lengths up to 1000 mm.
Price:
•Measuring range 0 … 1000 mm (39.37 inches)
•Absolute measuring system
•CANopen interface, analog: Current and voltage
•Operating voltage 9 … 32 VDC
•Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
•High degree of flexibility, adjustable to all measuring lengths thanks to teach-in
•High electro-magnetic compatibility
•High shock and vibration resistance
With PURE.MOBILE technology
Mechanical |
|
|---|---|
| MATERIAL PROPERTIES : | synthetic |
| Protection category : | IP6K9K |
| Mounting category : | Internal mounting |
| Measuring length from 0 to ... mm : | 0--1000mm |
Electrical |
|
|---|---|
| Working temperature : | -40 … 105 °C |
| Interfaces : | CANopen, CiA 301, CiA 305, CiA 406 |
| Operating voltage : | 9 ... 32 VDC |
| Current consumption : | <32 mA |
Others |
|---|
