Optex Photoelectric V series

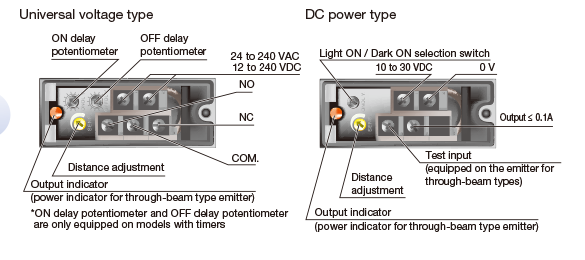

Universal voltage/Terminal block type
Universal voltage types are also available, eliminating the need to choose between voltages. Can be used with voltages around the world
Price:
• 2 directional terminal block system useful for installation

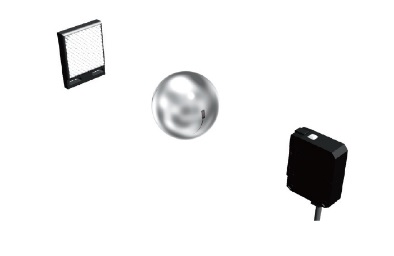

• Long range detection, 40 m through-beam brtype(universal voltage type)
• Types with built-in ON/OFF delay timer available
Mechanical |
|
|---|---|
| MATERIAL PROPERTIES : | Housing/Cover: ABS (glass fiber filled), Lens/Lens cover: PMMA |
| Protection category : | IP 67 |
| Distance adjustment : | 1-turn potentiometer (240°) |
Electrical |
|
|---|---|
| Temperature range : | -25 to +55°C |
| Operating voltage : | 10 to 30 VDC |
| Current consumption : | 35mAmp |
| Light source : | Red LED |
| Response time : | 1.5 ms or less |
Others |
|---|
