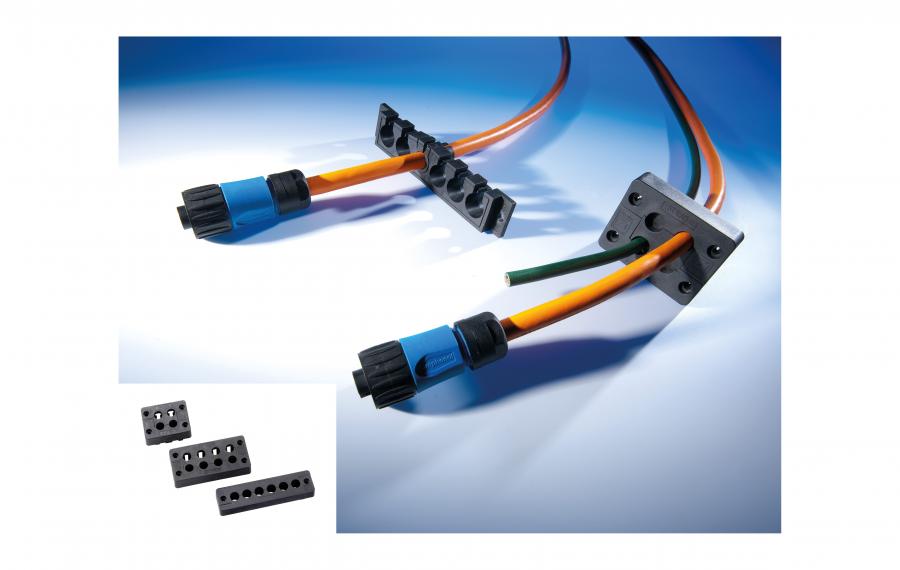

Murrplastik : KDL/C, KDL/D, KDL/E, and KDL/E+ are all components of the Murrplastik cable entry system, which is used to guide pre-assembled cables into enclosures. The KDL/C, KDL/D, and KDL/E refer to different frame types (or generations) of the cable entry plate, designed to fit standard cut-outs, with the KDL/E being a newer, snap-in version.
With connector
| KDL/C | Summary |
| KDL/C6/4 87141046 | 6 Pole cut-out and 4 small openings (46mm x 36mm Cut-out size) |
| KDL/C24/8 87141020 | 24 Pole cut-out with 6 small and 2 Medium openings (112mm X 36mm Cut-Out Size) |
| KDL/C24/4 87141016 | 24 Pole Cut-Out & 4 Medium Openings (112mm x 36mm Cut-Out Size) |
| KDL/D | |
| KDL/D10/6 – 87141038 | 10 pole cut-out & 6 small openings (65mm x 36mm cut-out size) |
| KDL/D24/12 87141010 | 24 pole cut-out & 12 small openings (112mm x 36mm cut-out size) |
| KDL/D6/4 – 87141044 | 6 Pole cut-out and 4 small openings (46mm x 36mm Cut-out size) |
| KDL/D24/4 – 87141014 | 24 Pole Cut-Out & 4 Medium Openings (112mm x 36mm Cut-Out Size) |
| KDL/D Mono 1 M40, 87141636 | Metric Thread is M40 x 1.5 & 1 medium opening |
| KDL/D Mono 1 M32, 87141620 | Metric Thread is M32 x 1.5 & 1 medium opening |
| KDL/D Mono1 M25 87141610 | Metric Thread is M25 x 1.5 & 1 small opening |
| KDL/E | |
| KDL/E24/7 87121018 | 24 pole cut-out with 6 small & 1 large openings,Dia 3 to 31 mm (112mm x 36mm cut-out size) |
| KDL/E24/10 87121020 | 24 pole cut-out with 10 small openings,Dia 3 to 16 mm (112mm x 36mm cut-out size ) |
| KDL/E16/5 87121012 | 16 pole cut-out with 4 small & 1 large openings,Dia 3 to 31 mm (86mm x 36mm) |

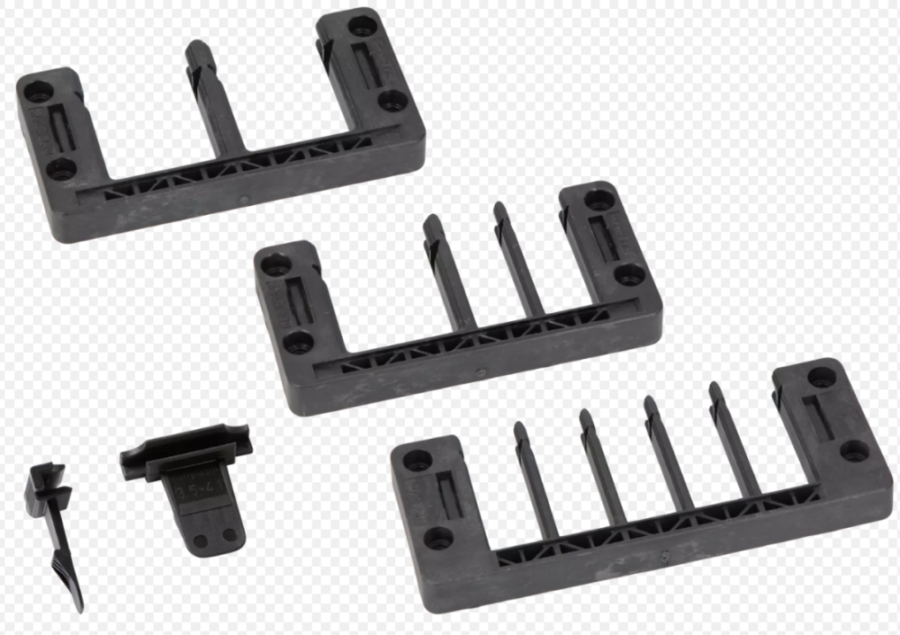

| KDL/E+ | |
| KDL/E+ 24/10 87121130 | 24 pole cut-out with 10 small openings,Dia 3 to 16 mm (112mm x 36mm cut-out size) |
| KDL/E+ 24/4, 87121110 | 24 pole cut-out with 2 small & 2 large openings,Dia 3 to 32mm (112mm x 36mm cut-out size) |
| KDL/E+24/7, 87121120 | 24 pole cut-out with 6 small & 1 Large openings,Dia 3 to 32 mm (112mm x 36mm cut-out size ) |
Price:
• Easy mounting from the front
• High packing density for up to 48 cables
• Integrated strain relief
• RoHS compliant
• UV resistant
• Made in Germany
• Suitable for standard cut-outs for 24-, 16-, 10- and 6-pin industrial connectors

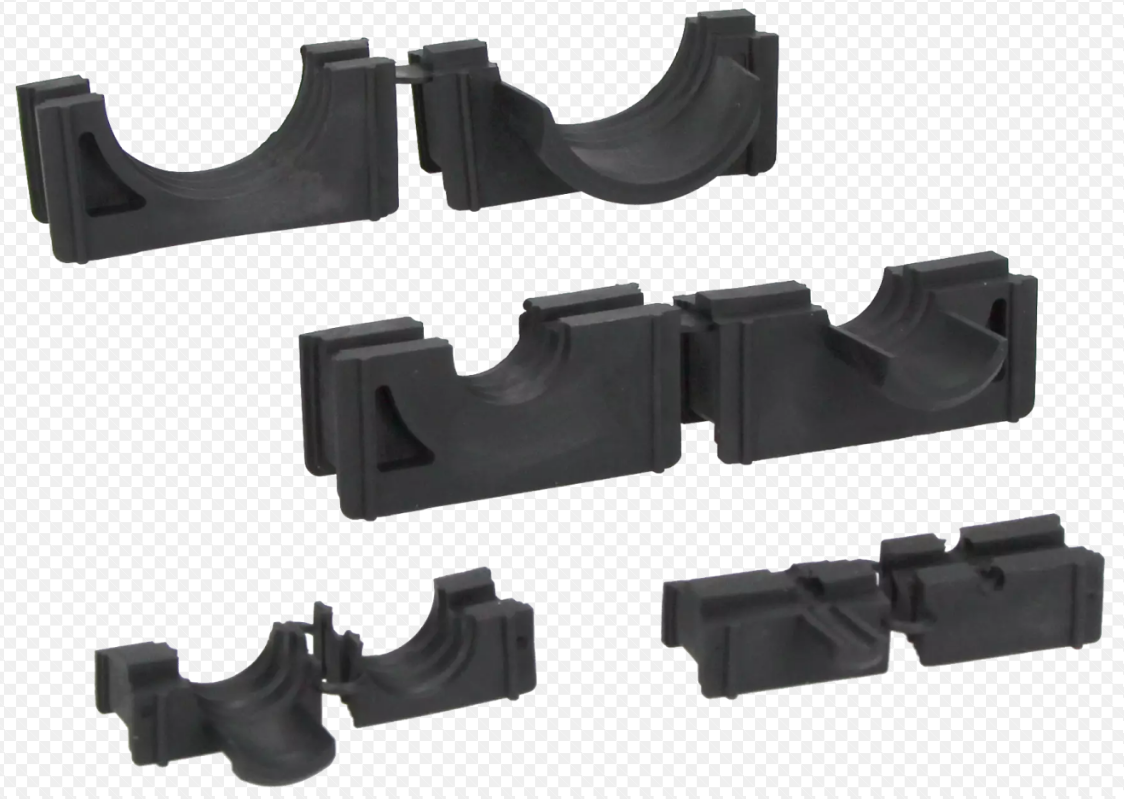

• Suitable grommets: KDT/X
Mechanical |
|
|---|---|
| Temperature range : | -30 – 100 °C |
| Flammability classification : | V0 |
| Protection level : | IP 54 (with suitable grommets and cables |
| MATERIAL PROPERTIES : | Frame: Polypropylene (PP) Block: TPE |
