Mechanical |
|
|---|---|
| Temperature range : | -22 - 158°F |
| Flammability classification : | V0 |
| Protection level : | IP65 |
| MATERIAL PROPERTIES : | Enclosure: Polyamide 6.6 Seal: TPU / EPDM |
Electrical |
|---|
Others |
|---|

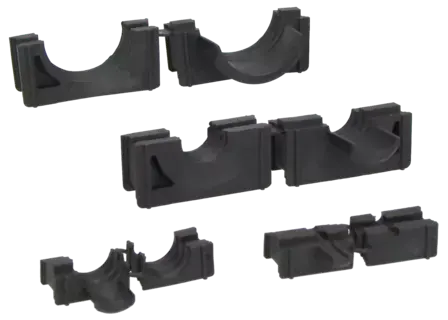

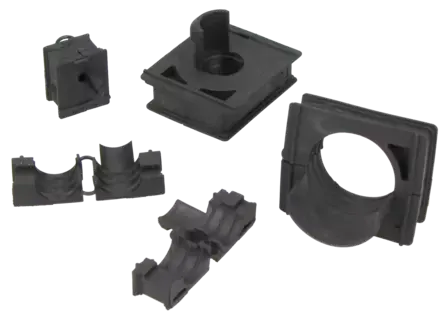

Murrplastik : The terms KDP/X24, KDP/ZR, KDP/N24, KDP/F24, KDT/ZE+ and KDP/Z refer to various types of plastic cable entry plates manufactured by Murrplastik. These products are used in industrial settings, such as control cabinets and machine construction, to feed cables and pneumatic hoses into an enclosure while providing protection from dust and liquids The KDT/ZE+ is a complementary cable grommet that is used with these plates to seal the opening around the cable, and it requires a cable tie for strain relief.
Without connector
| KDP/X 24 | Summary |

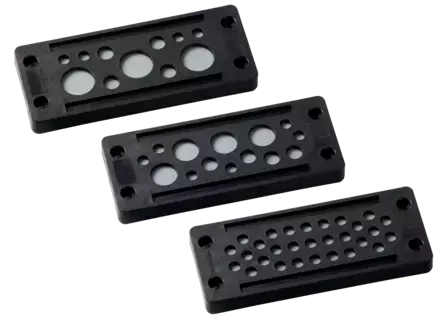

| KDP/X24/17 87301355 | 24 pole cut-out with 17 openings,Dia 5 to 9.2 mm (112mm x 36mm cut-out size) |
| KDP/X24/29 87301385 | 24 pole cut-out with 29 openings,Dia 3 to 6.5 mm (112mm x 36mm cut-out size) |
| KDP/X24/22 87301365 | 24 pole cut-out and cut out size is 112mm x 36mm (16 openings for Dia 3 to 6.5mm, 4 openings for Dia 5 to 9.2mm, & 2 openings for Dia 8 to 12.5mm) |
| KDP/X24/11 87301315 | 24 pole cut-out and cut out size is 112mm x 36mm (4 openings for Dia 3 to 6.5mm, 4 openings for Dia 5 to 9.2mm, & 3 openings for Dia 14 to 20mm) |
| KDP/X24/23 87301375 | 24 pole cut-out and cut out size is 112mm x 36mm (23 openings for Dia 4.1 to 8.1mm) |
| KDP/X24/14 87301345 | 24 pole cut-out and cut out size is 112mm x 36mm (6 openings for Dia 3 to 6.5mm, 4 openings for Dia 5 to 9.2mm, & 4 openings for Dia 9.6 to 15.9mm) |
| KDP/X24/10 87301305 | 24 pole cut-out and cut out size is 112mm x 36mm (2 openings for Dia 3 to 6.5mm, 1 openings for Dia 5 to 9.2mm, 5 openings for Dia 9 to 14mm, & 2 openings for Dia 14 to 20mm) |
| KDP/ZR | |

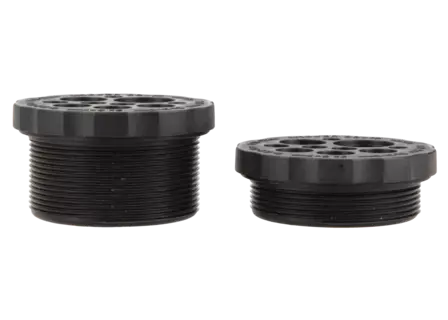

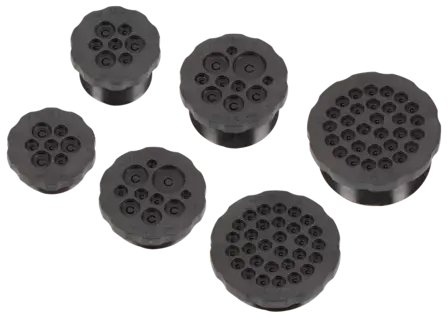

| KDP/ZR 50/10-1 87303142 | Metric Thread is M50x1.5 & 3 openings for Dia 6 to 9mm, & 7 openings for Dia 5 to 9mm |
| KDP/ZR 63/15 87303160 | Metric Thread is M63x1.5 & 4 openings for Dia 2 to 4mm,3 openings for Dia 3 to 6mm, 4 openings for Dia 5 to 9mm, 2 openings for Dia 7.5 to 12mm, 1 opening for Dia 10 to 16mm, & 1 opening for Dia 14 to 20mm |
| KDP/ZR 63/18,rund, KG, sw,VE5, 87303172 | Metric Thread is M63x1.5 & has 8 openings for Dia 3 to 6mm & 10 openings for Dia 5 to 9mm |
| KDP/N 24 | |
| KDP/N24/14 87301140 | 24 pole cut-out and cut out size is 112mm x 36mm (6 openings for Dia 3 to 6.5mm, 4 openings for Dia 5 to 9.2mm, & 4 openings for Dia 9.6 to 15.9mm) |
| KDP/N24/22 87301160 | 24 pole cut-out and cut out size is 112mm x 36mm (16 openings for Dia 3 to 6.5mm, 4 openings for Dia 5 to 9.2mm, & 2 openings for Dia 8 to 12.5mm) |
| KDP/N24/23 87301170 | 24 pole cut-out and cut out size is 112mm x 36mm (23 openings for Dia 4.1 to 8.1mm) |
| KDP/N24/29 87301180 | 24 pole cut-out with 29 openings,Dia 3 to 6.5 mm |
| KDP/N24/12 87301120 | 24 pole cut-out with 12 openings,Dia 8 to 12 mm |
| KDP/N24/17 87301150 | 24 pole cut-out with 17 openings,Dia 5 to 9.2 mm |
| KDP/F 24 | |
| KDP/F24/14 87302010 | 24 pole cut-out and cut out size is 112mm x 36mm (6 openings for Dia 0 to 9mm, 4 openings for Dia 0 to 11mm, & 4 openings for Dia 0 to 18mm) |
| KDP/F24/28 87302040 | 24 pole cut-out and cut out size is 112mm x 36mm (28 openings for Dia 0 to 9mm) |
| KDP/Z | |
| KDP/Z 24/23 VE 50 sw 87303032 | 24 pole cut-out and cut out size is 112mm x 36mm (23 openings for Dia 5 to 9mm) |
| KDP/Z 24/30, 87303040 | 24 pole cut-out and cut out size is 112mm x 36mm (20 openings for Dia 3 to 6mm, 6 openings for Dia 5 to 9mm, & 4 openings for Dia 7.5 to 12mm) |
| KDP/Z 24/14-1, VE 50, 87303022 | 24 pole cut-out and cut out size is 112mm x 36mm (2 openings for Dia 3 to 6mm, 4 openings for Dia 5 to 9mm, 3 openings for Dia 7.5 to 12mm, 3 openings for Dia 10 to 16mm, & 2 openings for Dia14 to 20mm) |
| KDP/Z 24/14, 87303010 | 24 pole cut-out and cut out size is 112mm x 36mm (14 openings for Dia 7.5 to 12mm) |
Without connector
Price:
• Plastic cable entry plate with snap-in function and one instead of two elastomer plates
• Economical connection technology for tool-free wiring of equipment and machinery
• The alternative to cable fittings
• Very good strain relief
• Protection class: IP 65
• Thermal stability: -30 °C to +70 °C
• Material: Housing Polyamide 6.6 / Seal: TPU/EPDM
• RoHS compliant
• UV resistant
• Made in Germany
• Suitable for standard cut-outs for 24-pin industrial connectors
• Assembly possible with catch hooks (sheet thickness 1.5 mm – 2.0 mm) or with M5 screws
• Properties
•Plastic cable entry plate plastic type KDP/X 24 LABS free
