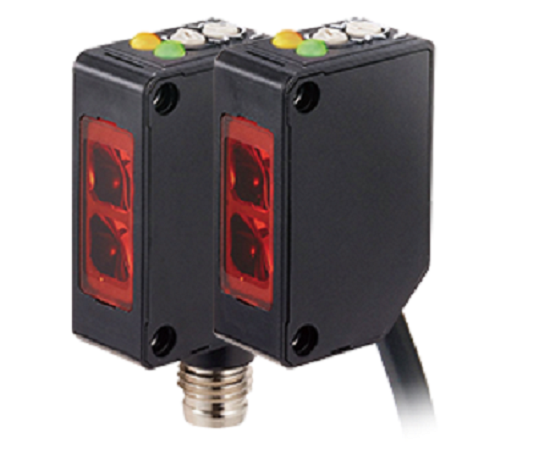

Optex Standard-sized Amplifier Built-in SensorsZ4 Series
IO-Link supported
Connectable to various field networks via IO-Link Master.
Monitoring data of received light amount and output status can be communicated with PLC via IO-Link Master.
In addition, sensitivity, output mode and timer settings can be made via the field network.
Price:
• Industry standard sensors with IO-Link supported
• Industry standard-sized amplifier built-in sensors
• IO-Link supported: Connectable to various field networks via IO-Link Master
• Enhanced ambient illuminance resistance against sunlight, incandescent and LED lights
Mechanical |
|
|---|---|
| MATERIAL PROPERTIES : | Housing: ABS, Front cover: PMMA |
| Protection category : | IP67 |
| Distance adjustment : | 1-turn potentiometer |
Electrical |
|
|---|---|
| Temperature range : | -25 to +55℃ |
| Operating voltage : | IO-Link mode: 18 to 30 VDC, SIO mode: 10 to 30 VDC |
| Current consumption : | 20mAmp |
| Light source : | 4-element red LED, Wavelength: 632 nm |
| Response time : | 500 μs or less |
Others |
|---|
