LTN Slip ring: The slip ring unit SC040 offers a high current transmission within small dimensions. Therefore this unit can replace rotary joints, which contain mercury, that is forbidden in certain branches like the food industry.
Stated values are standard. Other configurations are available on request. Used in Applications like food processing, packaging machine, rotary milking parlour

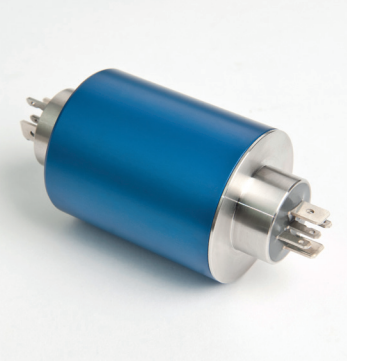

SC040

Price:

• Outer diameter: max. 40 mm
• Flat pin connector for socket 6.3 m or 2.8 mm
• Rings with 2 A or 10 A can be combined
• Fieldbusses
• Fast Ethernet (certified to 100-BaseT CAT5e & Cat6)
• Drive-Cliq

  • Categories: SC040
  • Tags: Dairy food processing metal Packaging Industry Pharma
Download
Mechanical
Protection category : IP50 up to IP54, electrical interface IP00
Electrical
Number of rings : max. 6
Max. speed : max. 400 rpm
Voltage: max. 230 VAC
Current per ring : max. 10 A (15 A on request)
Others

Industries

Dairy
food processing
metal
Packaging Industry
Pharma

Datasheet
