Unitronics Snap IO plugs directly on the back of compatible OPLCs
| Snap-in I/O | Summary |
| V200-18-E1B | 16 Digital Inputs including 2 HSC, 3 Analog Inputs, 10 Relay Outputs, 4 Outputs (pnp/npn) including 2 HSO |
| V200-18-E2B | 16 Digital Inputs, 2HSC(pnp/npn), 2 Analog Inputs, 10 Relay Outputs, 2 HS Outputs, 2 Analog Outputs |
| V200-18-E3XB | 18 Digital Includes 2 HSC, 4 Analog/PT100/TC Inputs, 15 Relay Outputs, 2(PNP/NPN) Uutputs, includes 2 H.S, 4 Analog outputs |
| V200-18-E4XB | 18 Digital Includes 2 HSC, 4 Analog/PT100/TC Inputs, 15 Transistor Outputs, 2(PNP/NPN) Uutputs, includes 2 H.S, 4 Analog outputs |
| V200-18-E5B | 18 Digital Inputs, 2 HSC(pnp/npn), 3 Analog Inputs 15 Outputs (pnp), 2 HS Outputs |
| V200-18-E6B | 18 Digital Inputs(pnp/npn), 2 shaft encoder inputs, 5 Analog Inputs, Includes 2 configurable to RTD/TC, 15 Relay Outputs, 2 (pnp/npn) Outputs / 2 high-speed outputs, 2 Analog Outputs. |
| V200-18-E46B | 18 Digital, includes 2 H.S.C Inputs, 4 Analog/PT100/TC inputs, 15 pnp Outputs, 2 pnp/npn Outputs, includes 2 H.S. outputs, 4 Analog outputs |
| V200-18-E62B | 30 Digital Inputs, includes 2 shaft encoder inputs, 2 Analog Inputs, 28 Outputs (pnp), 2 Outputs(pnp/npn) includes 2 high-speed outputs |
Mechanical |
|
|---|---|
| Operating Temperature: | 0 … 50 °C |
| Dimensions : | 138x23x123mm (5.43x0.9x4.84”) |
| Installation options : | Mount onto back of V570/700/1040/1210 |
Electrical |
|
|---|---|
| IO Options : | digital &/ analog &/ high speed, temperature &/ weight measurement |
| Supply Voltage : | 24 VDC |
Others |
|
|---|---|
| General Features : | Back panel fit for V570/V700/V1040/V1210 |
• 7″ color touchscreen from the front
• Snap-in I/O modules for an All-in-One controller
• Expands up to 1000 I/Os
• Multi-language display
• Built-in Alarm Screens
• 3.5″ color touch screen
• Flat fascia, high resolution HMI color touchscreen
• Range of on-board I/O configurations
• Multi-language display
• Built-in Alarm Screen

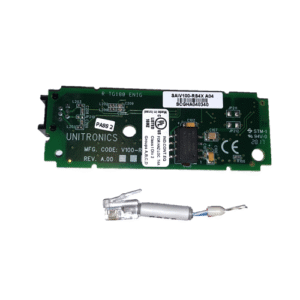

• Vision™ and Samba™ Communication Modules
