Showing 13–24 of 26 results
-
H120
• For large motors and generators • Particularly resistant • Simple installation • Dimension Ø 100 mm • 5.000 ppr incremental • Max 12 mm hollow shaft, blind hole • Max 28 mm hollow shaft, through • Max 16 mm insert shaft, cylindrical • Max 17 mm insert shaft, tapered • Max 1" hollow shaft, throughH120
• For large motors and generators
• Particularly resistant
• Simple installation
• Dimension Ø 100 mm
• 5.000 ppr incremental
• Max 12 mm hollow shaft, blind hole
• Max 28 mm hollow shaft, through
• Max 16 mm insert shaft, cylindrical
• Max 17 mm insert shaft, tapered
• Max 1″ hollow shaft, through -
IG06
• Resolutions of max. 1024 pulses/revolution • Through hollow shafts up to ø20 mm • Housing made of impact-resistant plastic • Low-cost versionIG06
• Resolutions of max. 1024 pulses/revolution
• Through hollow shafts up to ø20 mm
• Housing made of impact-resistant plastic
• Low-cost version -
IG07-XX
• Resolutions of max. 1024 pulses/revolution • Through hollow shafts up to ø20 mm • Housing made of zinc die-cast • High shaft load rating, radial 5600 N, axial 1400 NIG07-XX
• Resolutions of max. 1024 pulses/revolution
• Through hollow shafts up to ø20 mm
• Housing made of zinc die-cast
• High shaft load rating, radial 5600 N, axial 1400 N -
IH58-XX
• Incremental encoder IH5828 • Optical rotary encoder, large hollow shaft, small overall sizeIH58-XX
• Incremental encoder IH5828
• Optical rotary encoder, large hollow shaft, small overall size -
Incremental Encoder
• Dimensions from Ø 24 mm to Ø 58 mm • Optical and magnetic scanning • Working temperature range -40 °C to +105 °C • Resolution up to 36,000 ppr • HTL, TTL, and SinCos output signalIncremental Encoder
• Dimensions from Ø 24 mm to Ø 58 mm
• Optical and magnetic scanning
• Working temperature range -40 °C to +105 °C
• Resolution up to 36,000 ppr
• HTL, TTL, and SinCos output signal -
KIH40
• Economical • For small devices and machines • Robust bearing structure • Dimension Ø 40 mm • 2.500 ppr incremental • Max 8 mm hollow shaft, blind hole • Max 1/4" hollow shaft, blind holeKIH40
• Economical
• For small devices and machines
• Robust bearing structure
• Dimension Ø 40 mm
• 2.500 ppr incremental
• Max 8 mm hollow shaft, blind hole
• Max 1/4″ hollow shaft, blind hole -

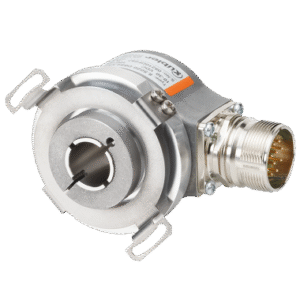

KIH50
• Economical • Ideal for simple machines • Robust bearing structure • Dimension Ø 50 mm • 5.000 ppr incremental • Max 15 mm hollow shaft, throughKIH50
• Economical
• Ideal for simple machines
• Robust bearing structure
• Dimension Ø 50 mm
• 5.000 ppr incremental
• Max 15 mm hollow shaft, through -
KIS40
• Economical • For small devices and machines • Robust bearing structure • Dimension Ø 40 mm • 2.500 ppr incremental • Max 8 mm shaft, with flat surface • Max 1/4" shaft, with flat surfaceKIS40
• Economical
• For small devices and machines
• Robust bearing structure
• Dimension Ø 40 mm
• 2.500 ppr incremental
• Max 8 mm shaft, with flat surface
• Max 1/4″ shaft, with flat surface -
KIS50
• Economical • Ideal for simple machines • Robust bearing structure • Dimension Ø 58 mm • 5.000 ppr incremental • Max 12 mm shaft, with flat surfaceKIS50
• Economical
• Ideal for simple machines
• Robust bearing structure
• Dimension Ø 58 mm
• 5.000 ppr incremental
• Max 12 mm shaft, with flat surface -
M3678
• High precision • Particularly resistant • Wear-free • Magnetic – robust • Dimension Ø 36 mm • 14 bits singleturn • Max 10 mm hollow shaft, blind hole • Max 1/4" hollow shaft, blind holerticularly resistant • Without gear with 100% magnetic insensitivity • Dimension Ø 36 mm • 16 bits singleturn • Max 10 mm hollow shaft, blind hole • Max 1/4" hollow shaft, blind holeM3678
• High precision
• Particularly resistant
• Wear-free
• Magnetic – robust
• Dimension Ø 36 mm
• 14 bits singleturn
• Max 10 mm hollow shaft, blind hole
• Max 1/4″ hollow shaft, blind holerticularly resistant
• Without gear with 100% magnetic insensitivity
• Dimension Ø 36 mm
• 16 bits singleturn
• Max 10 mm hollow shaft, blind hole
• Max 1/4″ hollow shaft, blind hole -
M5863
• With 58 mm flange • Particularly resistant • Magnetic – robust • Dimension Ø 58 mm • 14 bits singleturn • 24 bits multiturn • Max 10 mm shaft, with flat surfaceM5863
• With 58 mm flange
• Particularly resistant
• Magnetic – robust
• Dimension Ø 58 mm
• 14 bits singleturn
• 24 bits multiturn
• Max 10 mm shaft, with flat surface -
M5868
• With 58 mm flange • Particularly resistant • Magnetic – robust • Dimension Ø 58 mm • 14 bits singleturn • 29 bits multiturn • Max 10 mm shaft, with flat surfaceM5868
• With 58 mm flange
• Particularly resistant
• Magnetic – robust
• Dimension Ø 58 mm
• 14 bits singleturn
• 29 bits multiturn
• Max 10 mm shaft, with flat surface
