Unitronics wide range of expansion IO modules that will fit your system’s precise requirements.
| Expansion Module | Summary | |
|
Digital
|

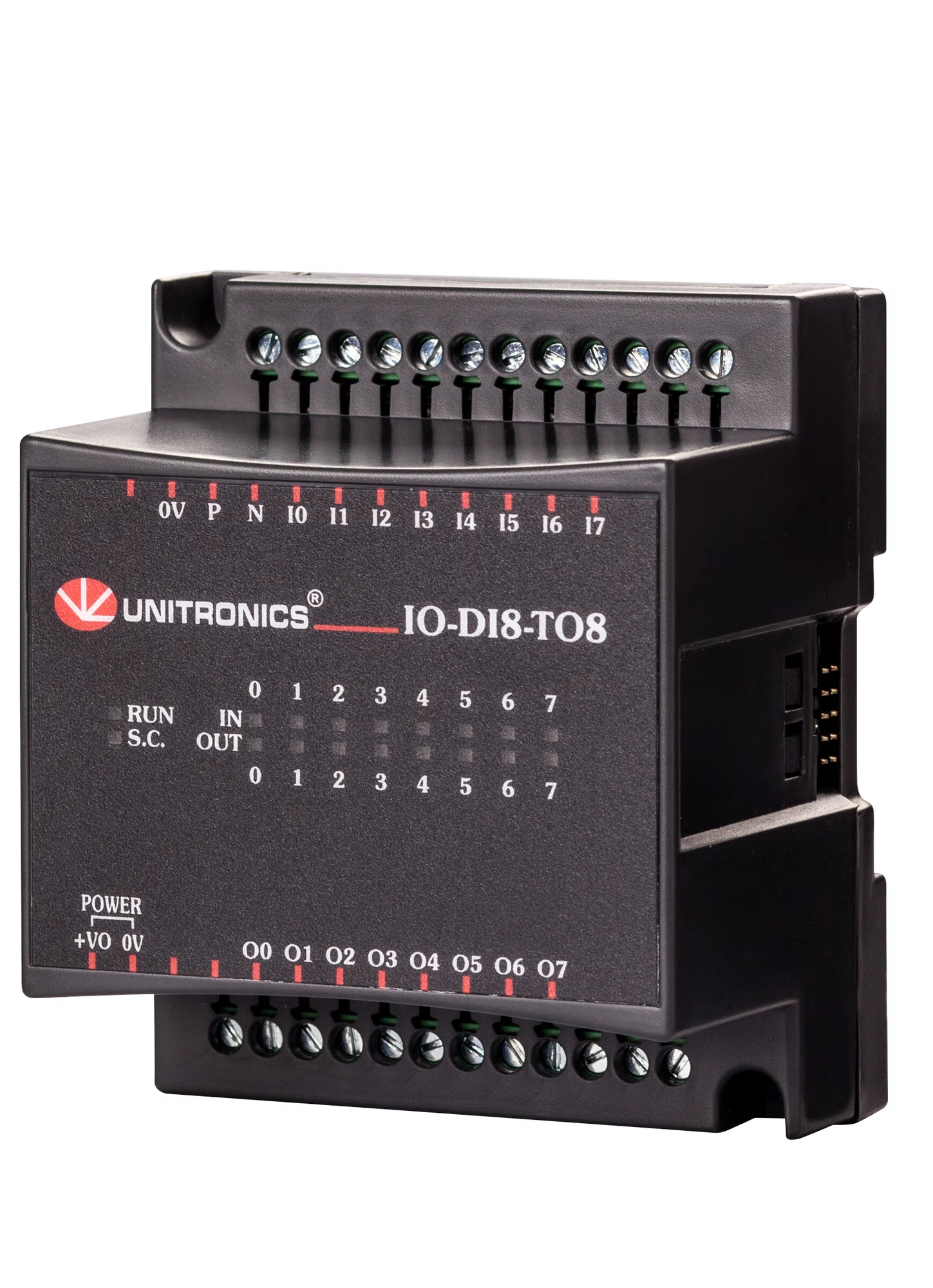

IO-DI8-TO8 | 8 Inputs(pnp/npn), 8 Outputs(pnp) |
| IO-DI8-RO4 | 8 Inputs(pnp/npn), 4 Relay Outputs | |
| IO-DI8-RO8 | 8 Inputs(pnp/npn), 8 Relay Outputs | |
| EX90-DI8-RO8 | 8 Inputs(pnp/npn), 4 Relay Outputs (Built-in Adapter) | |
| IO-DI16 | 16 Digital Inputs(pnp/npn) | |
| IO-TO16 | 16 Outputs(pnp) | |
| IO-RO8 | 8 Relay Outputs | |
| IO-RO16 | 16 Relay Outputs | |
| IO-DI8ACH | 8 110/220VAC Inputs | |
|
Analog, Temperature and
Weight/Strain Measurements |
IO-AI4-AO2 | 4 Analog Inputs, 2 Analog Outputs |
| IO-PT400 | 4 RTD Inputs PT100, NI100, NI120 | |
| IO-PT4K | 4 RTD Inputs PT1000, NI1000 | |
| IO-AO6X | 6 Isolated Analog Outputs | |
| IO-LC1 | 1 Loadcell Inputs, 1 Digital Input, 2 Output | |

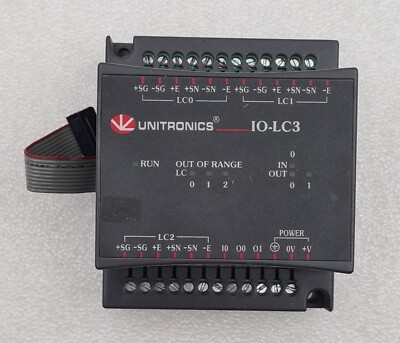

| IO-LC3 | 3 Loadcell Inputs, 1 Digital Input, 2 Output | |
| IO-ATC8 | 8 Analog / TC Inputs | |
| IO-AI8 | 8 Analog Inputs | |
|
XL Digital/Analog
|
IO-D16A3-RO16 | 16 Digital Inputs, including 2 HSC, 3 Analog Inputs,16 Relay Outputs |
| IO-D16A3-TO16 | 16 Digital Inputs, including 2 HSC, 3 Analog Inputs,16 Outputs including 1 HSO | |
| EX-D16A3-RO8 | 16 Digital Inputs, including 2 HSC, 3 Analog Inputs, 8 Relay Outputs (Built-in Adapter) | |
| EX-D16A3-TO16 | 16 Digital Inputs, including 2 HSC, 3 Analog Inputs, 16 Relay Outputs (Built-in Adapter) | |
| High-speed Remote I/O Module | EXF-RC15 | 9 Digital Inputs, 4 Digital Outputts, 2 Relay Outputs, CANbus port |
Price:
• Expand your system with flexible IO options
• Suitable for local and remote expansion adapters
• I/O options include digital, analog, high-speed, temperature & weight
Mechanical |
|
|---|---|
| Operating Temperature: | 0 … 50 °C |
| Dimensions : | Refer Data sheet for selected IO module |
| Installation options : | Mount on standard DIN rail after local/remote adapter |
Electrical |
|
|---|---|
| IO Options : | digital &/ analog &/ high speed, temperature &/ weight measurement |
| Supply Voltage : | 24VDC, 110/220 VAC |
Others |
|---|
• 12.1″ color touchscreen from the front
• Snap-in I/O modules for an All-in-One controller
• Expands up to 1000 I/Os
• Multi-language display
• Built-in Alarm Screen
• 3.5″ color touch screen
• Flat fascia, high resolution HMI color touchscreen
• Range of on-board I/O configurations
• Multi-language display
• Built-in Alarm Screen
• Expandability with different expansion IO adapters
• Local Expansion Adapter Kits allow you to increase the number of I/Os connected to a single UniStream®
• Local expansion adapter with Short & Long-range adapters with different cable lengths Unitronics’ recent launch of a new line, UniStream® Remote I/O
• Each remote I/O adapter comprises two Ethernet ports to daisy-chain adapters to support up to 8 adapters per controller
