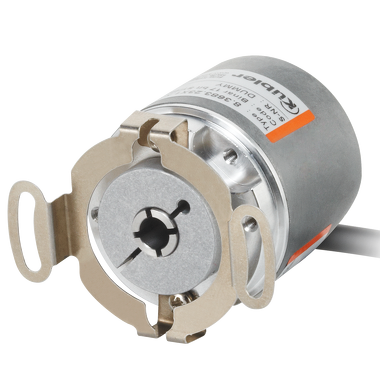

kuebler :The absolute encoders Singleturn Sendix F3658 / F3678 with patented Intelligent Scan Technology™ and CANopen interface are characterized by special robustness and compactness. With dimensions of only 36 x 42 mm, a shaft or blind hollow shaft up to 10 mm is available. Its high-precision optical electronics achieve a resolution of 16 bits
Price:
• High precision
• Particularly resistant
• Without gear with 100% magnetic insensitivity
• Dimension Ø 36 mm
• 16 bits singleturn
• Max 10 mm hollow shaft, blind hole
• Max 1/4″ hollow shaft, blind hole
Mechanical |
|
|---|---|
| Dimension: | Ø 36 mm |
| Shaft type : | 6 mm hollow shaft, blind hole 8 mm hollow shaft, blind hole 10 mm hollow shaft, blind hole 1/4 " hollow shaft, blind hole |
| Working temperature : | -40 °C ... +85 °C |
| Flange type : | Ø 36.00 mm |
| Connection types : | Tangential cable |
| Max. rotational speed : | 12.000 min-1 |
Electrical |
|
|---|---|
| Power supply : | 10...30 V DC |
| Interfaces : | CANopen |
| Resolution max. : | 16 bits singleturn |
Others |
|---|
