Unistream Built In

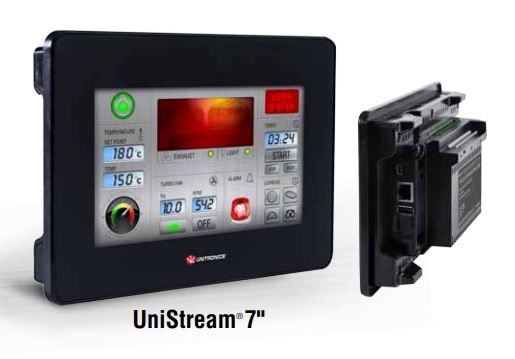

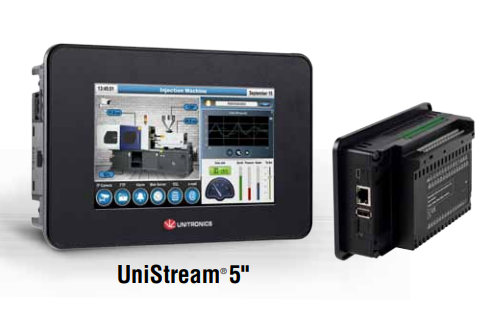

Superbly compact Unistream, 5″, 7” or 10.1″ standard and 5″, 7” or 10.1″ Pro are highly compact controllers, where the PLC, HMI, and I/Os are built into a single unit and in a range of built-in I/O configurations.

Item	Summary
US5-X5-B1, US7-X5-B1, US10-X5-B1 US5-X10-B1, US7-X10-B1, US10-X10-B1	No built-in I/Os
US5-X5-TR22, US7-X5-TR22, US10-X5-TR22 US5-X10-TR22, US7-X10-TR22, US10-X10-TR22	10 Digital, 2 Analog Inputs, 2 Transistor outputs, npn, including 2 PWM outputs. 8 Relay outputs
US5-X5-T24, US7-X10-T24, US10-X5-T24 US5-X10-T24, US7-X10-T24, US10-X10-T24	10 Digital, 2 Analog Inputs, 12 Transistor outputs, pnp, including 2 PWM outputs.
US5-X5-RA28, US7-X5-RA28, US7-X5-RA28 US5-X10-RA28, US7-X10-RA28, US10-X10-RA28	14 Digital, including 2 HSC, 2 Analog Inputs, 2 Temperature inputs, 8 Relay outputs, 2 Analog outputs
US5-X5-TA30, US7-X5-TA30, US10-X5-TA30 US5-X10-TA30, US7-X10-TA30, US10-X10-TA30	14 Digital inputs, including 2 HSC, 2 Analog inputs, 2 Temperature inputs, 10 Transistor outputs, pnp, including 2 PWM outputs, 2 Analog outputs
US5-X5-R38, US7-X5-R38, US10-X5-R38 US5-X10-R38, US7-X10-R38, US10-X10-R38	24 Digital inputs, including 4 HSC, 12 relay outputs
US5-X5-T42, US7-X5-T42, US10-X5-T42 US5-X10-T42, US7-X10-T42, US10-X10-T42	24 Digital inputs, including 4 HSC, 2 Analog inputs, 16 Transistor outputs, pnp, including 2 PWM outputs
US5-X5-TA32, US7-X5-TA32, US10-X5-TA32 US5-X10-TA32, US7-X10-TA32, US10-X10-TA32	13 Digital inputs, including 2 HSC, 6 Analog inputs, 2 Temperature inputs, 8 Transistor outputs, pnp, including 2 PWM outputs, 3 Analog outputs
US15-X5-B1 US15-X10-B1	No built-in I/Os

Price:

• PLC, HMI, and I/Os are built into a single unit and in a range of built-in I/O configurations
• High-quality 5″, 7” or 10.1″ HMI touch panel
• Powerful PLC—expand up to 2048 I/O points
• Built-in COM ports: Ethernet, USB host & device
• Add-on COM modules available: CANbus, RS232, RS48
• Available in cloud series, connect to ‘UniCloud’, Unitroncis cloud service, design a no-code dashboard, and go live in less than 30 minute
• “Cloud” PLC comes with an embedded Start-up Subscription at no extra charge
• A pre-paid 5-year Start-up Subscription plan-there is no monthly subscription fee.
• Simply connect the PLC to UniCloud, design a no-code dashboard aided by the built-in setup assistant, and go Live

Categories: Unistream Built In
Tags: and waste water management automotive energy and environment food processing Packaging Petrochemicals plastic and textile

Download Download Download Download

Technical Data
Industries
Downloads
Useful links

Mechanical
HMI :	5", 7", 10.4", 15.6" High Quality color touch screen, Multi-Language
Operating Temperature:	-20 … 55 °C

Electrical
Communication :	1 Ethernet TCP/IP • 1 USB host • 1 Mini USB for programming
IO Options :	• EtherNet/IP • MODBUS: Serial & TCP/IP • CANopen, CANlayer2, UniCAN • BACnet, KNX and M-Bus via gateway • Message Composer for 3rd party protocols
Program Memory :	8MB
Supply Voltage :	24 VDC

Others
General Features :	• OPC UA • MQTT Client • SNMP • SQL Client(Pro) • REST API • FTP server & client • Web Server(Pro)• E-mail & SMS • Remote access via VNC • VNC Client • 4G Routers

Industries

and waste water management
automotive
energy and environment
food processing
Packaging
Petrochemicals
plastic and textile

UG_USx-B1_TR22_T24

UG_USx-R38_T42

UG_USx-RA28_TA30

UG_USx-TA32
